Docker images deep dive

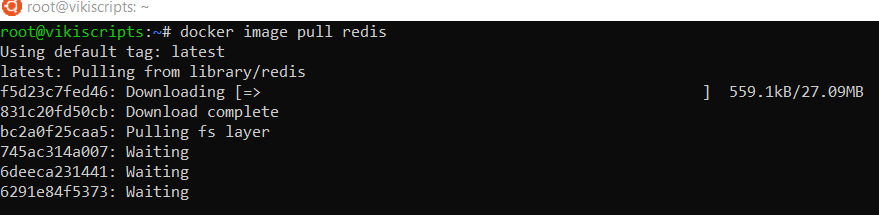

• docker pull <image_name> pulls the image from registry (default is docker hub

  docker.io)

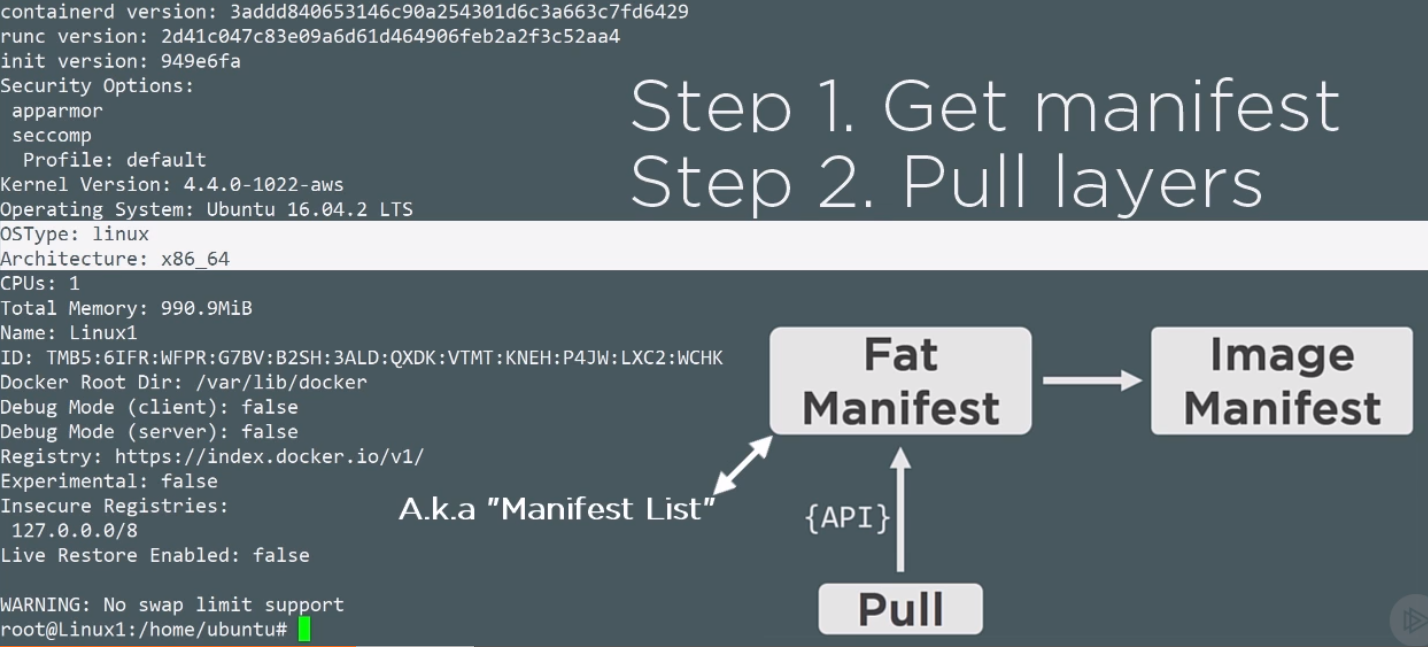

• Pulling an Image is a 2 step process (from docker.io or any other registry i.e. google container registry aka gcr.io etc).

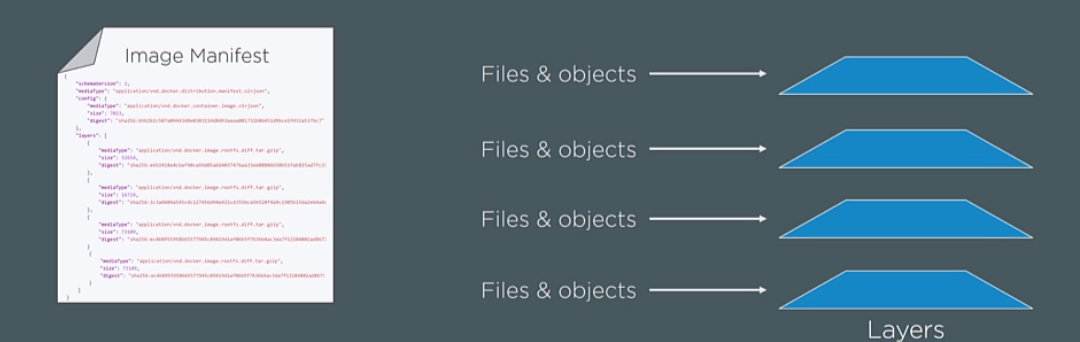

• It pulls a fat manifest and then checks for OS type and architecture to pull actual image manifest.
• images are then pulled in seperate layers.

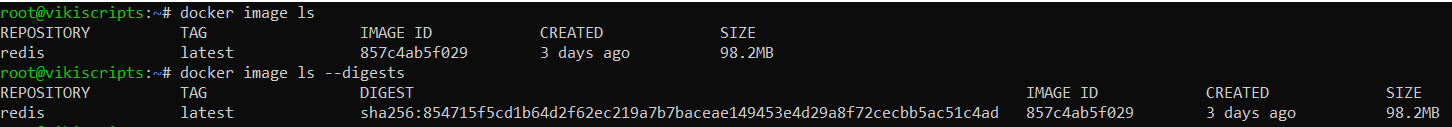

• Images are hashed for integrity

Behind the sceene

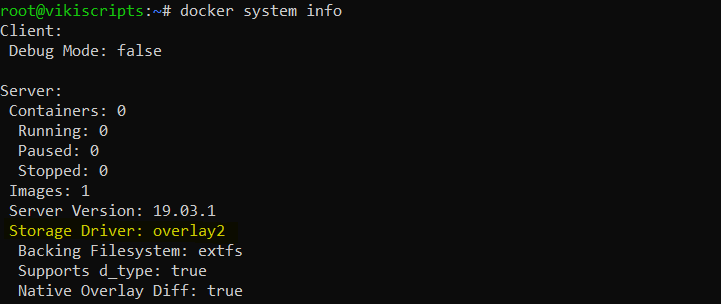

• The storage driver keeps and manages the images cached locally

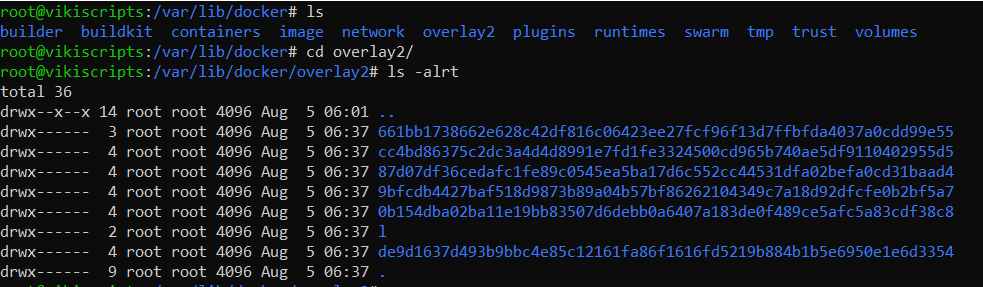

• Lets browse the Docker Root Dir: /var/lib/docker to inspect the local images

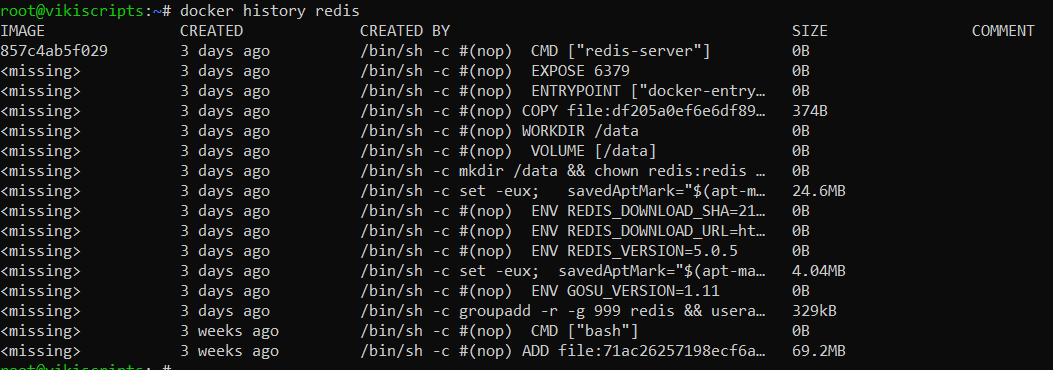

• docker history <image_name> will show you how the image is built by layers

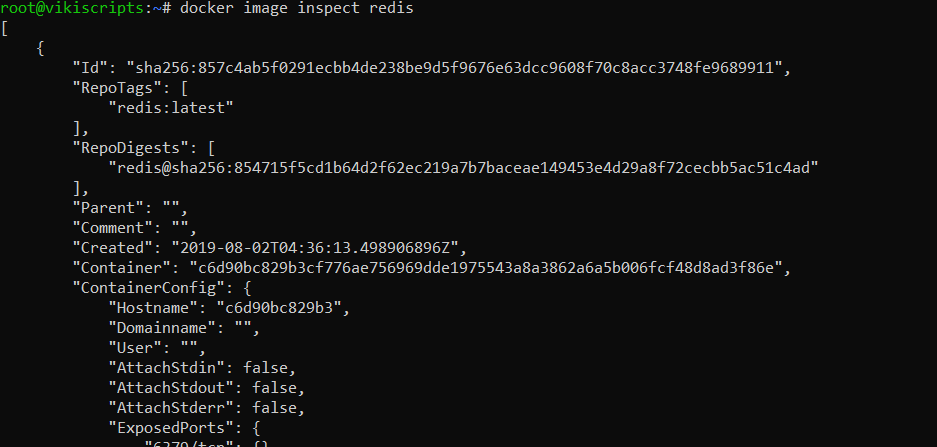

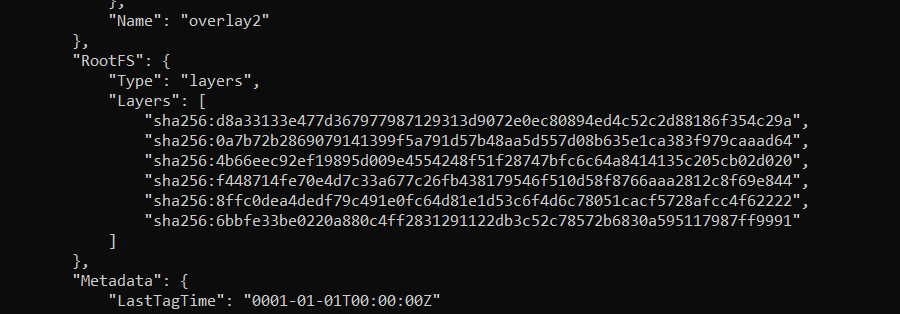

• docker inspect <image_name> will provide the config and manifest of that image

and Layers too if you scroll it down

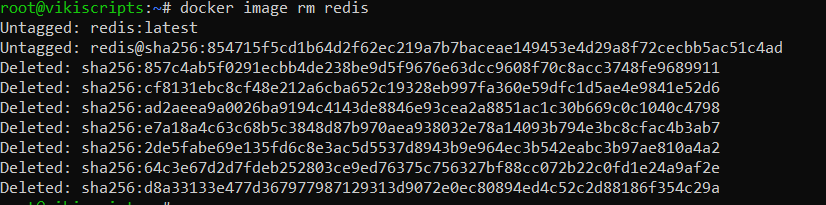

• Finally docker image rm <image_name> OR docker rmi <image_id> will remove the locally cached image
